4th Axis CNC Machining for Precision Industrial Components
Keytex Machines offers 4th Axis CNC Machining for customized industrial components requiring precise rotary positioning and detailed machining operations. Our machining capabilities support complex component profiles, multiple machining angles, and application-specific engineering requirements.
How Does 4th Axis CNC Machining Work?
4th axis CNC machining uses an additional rotary axis alongside the conventional X, Y, and Z linear axes of a CNC machine.
In a typical four-axis milling setup, the rotary axis allows the workpiece to rotate around a controlled axis while the cutting tool performs machining operations.
This enables the machine to access different sides of a component with fewer manual setup changes.
The process can be used for indexed machining, where the component rotates to a specific angle before cutting, or simultaneous machining, where rotary and linear movements are coordinated.
The machining method depends on the component design, equipment configuration, and required features.
For cylindrical or ring-shaped components, rotary positioning can simplify the manufacturing of holes, slots, profiles, and other features arranged around the circumference.
Key Advantages of 4 Axis CNC Machining Services
- Improved Access to Multiple Surfaces
Four-axis machining allows cutting tools to reach different areas of a component through controlled rotation. This can reduce the need to manually reposition the workpiece. - Better Feature Alignment
Machining multiple features within a single setup can help maintain their positional relationship, particularly when holes or slots must be located at specific angular positions. - Suitable for Complex Component Designs
Four-axis machining can support components with curved surfaces, circular arrangements, and geometries that are difficult to machine using only three linear axes. - Reduced Setup Requirements
Depending on the part design, rotary machining can reduce the number of separate setups required. This may improve manufacturing efficiency and help limit errors caused by repeated repositioning. - Custom Manufacturing Flexibility
Four-axis machining supports different component sizes, profiles, and design requirements within the limits of the available machine and tooling.
Precision Wheel Ring Components and Their Applications
Wheel rings and similar circular components are used in different mechanical arrangements, depending on their design and function.
They may form part of rotating assemblies, bearing-related mechanisms, positioning systems, or specialized industrial machinery.
Important design considerations can include:
- Internal and external diameters
- Concentricity between machined surfaces
- Surface finish and dimensional tolerance
- Material strength and wear resistance
- Mounting features and hole positioning
- Operating speed and mechanical loads
A wheel ring intended for high-speed operation may require additional engineering considerations, including balance, fit, and material suitability.
The exact performance requirements must be determined from the customer’s design and application.
4th Axis Machining vs. 3-Axis Machining
Understanding the difference between three-axis and four-axis machining can help manufacturers select a suitable process.
3-Axis CNC Machining
Three-axis machining controls movement along the X, Y, and Z axes. It is widely used for machining flat surfaces, pockets, holes, and many conventional mechanical components.
4-Axis CNC Machining
Four-axis machining adds a controlled rotary axis. This enables the workpiece to rotate during or between cutting operations.
The additional axis is useful for components requiring features on multiple sides or around a cylindrical surface.
However, four-axis machining is not automatically necessary for every part. Simple components may be manufactured more efficiently using conventional CNC turning or three-axis milling.
The best method depends on component geometry, accuracy requirements, and production needs.
Custom 4th Axis Machining Specifications
Keytex Machines works with customers to understand the technical requirements of specialized machining projects.
For custom CNC machined components, the following information helps determine manufacturing feasibility:
- Component Dimensions
Overall length, width, diameter, thickness, and other important measurements. - Material Selection
The required engineering material, grade, and any applicable material standards. - Dimensional Tolerances
Acceptable variation in critical dimensions, hole positions, and mating surfaces. - Surface Finish
The required surface quality based on the component’s mechanical function. - Machining Features
Details of grooves, slots, holes, pockets, circular profiles, and other design features. - Production Quantity
The number of components required, including prototype or repeat-production needs.
Providing a complete technical drawing helps reduce uncertainty during project evaluation.
Applications of 4th Axis Machined Components
Four-axis machining is relevant to several industrial applications where rotational positioning or multi-sided machining is required.
- Industrial Machinery Components
Custom rings, cylindrical parts, mechanical housings, and specialized machine components may benefit from rotary machining. - Textile Machinery Parts
Textile equipment can contain rotating assemblies, shafts, cams, and customized mechanical components that require carefully positioned features. - Automation and Mechanical Equipment
Four-axis machining can support components used in motion systems, equipment assemblies, and specialized automation mechanisms. - Custom Engineering Projects
Engineers developing non-standard equipment may require components with unique geometries that cannot be sourced as standard products.
The appropriate machining process depends on the design rather than the industry alone.
Why Choose Keytex Machines for 4th Axis Work?
Keytex Machines focuses on precision component manufacturing and customized machining for industrial requirements.

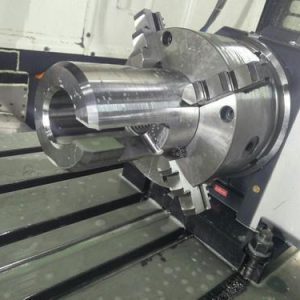

Our 4th Axis Work project reflects our involvement in manufacturing specialized mechanical components according to customer specifications.
We offer access to related machining capabilities, including CNC turning, CNC milling, and customized component manufacturing.
Customers can discuss their requirements with our team to identify a suitable machining method for their project.
Our manufacturing operations are based in Sachin GIDC, Surat, Gujarat, India.
For components requiring specific tolerances, materials, or inspection requirements, these details should be agreed upon before manufacturing begins.
